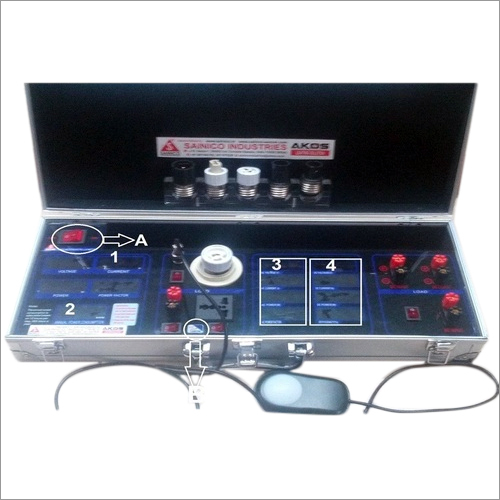

Led Lamp & Driver Tester
Ac input voltage: AC 85V~265V. DC output Voltage: 0~100V.
The tester could test electric appliance among 85V-265V. The tester could test not only the lighting products(LED lamps, CFL energy saving lamps, halogen lamps) but also the LED PCB Board and the other electric appliance.
Maximum testing Wattage: 2500W/AC 1000W/DC.
Maximum testing current: 10A.
Testing parameters: LUX, CCT (Color Temperature), Voltage, Current, Wattage, Power Factor, Annual Power Consumption (Calculated based on 10 hrs/day). AC Voltage, AC Current , AC Power, AC Power Factor, DC Voltage DC Current, Efficiency(AC Power/DC Power*100%).
Convenient to use with multi-use sockets, it could test the appliance with power plug of different countries. It is no need to connect the wire in addition.
With different convertors: E14, B15, B22, GU10, G9, MR16 (Provided), it could test different lamps with different bases.
You also could test any appliance when you connect the tested appliances with wires and terminal holder on the tester.
With fuse in power sockets, it could protect load short circuit.
Compact size (490*95*90mm), very light (2.85kg), convenient to take.
Please ask qualified person to operate the tester.
Must turn on the power only after connecting with load.
Connect the sensor probe before testing.
To get accurate data, make sure testing in a environment without lighting source when you test color temperature and Lux.
Notice the voltage and watt of the tested lamp. It only could test AC high Voltage products.
The metal components in load area untouchable.
Please turn off power after testing.
Please follow the steps of operation and keep this operation manual well for future use.
When check the driver and PCB make sure the +/- wire in right position, and please ask the professional person to operate the testing.
